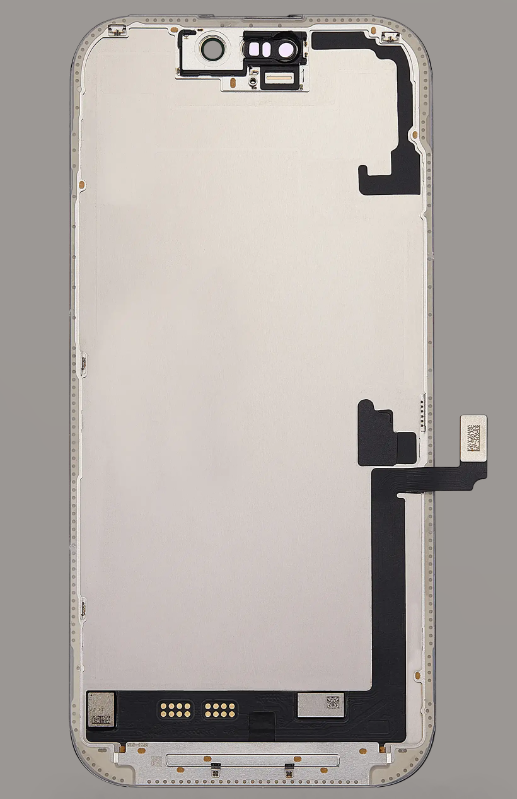

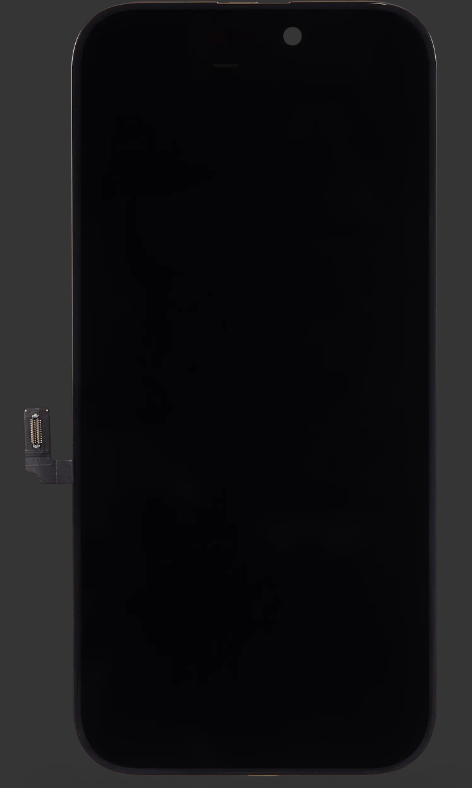

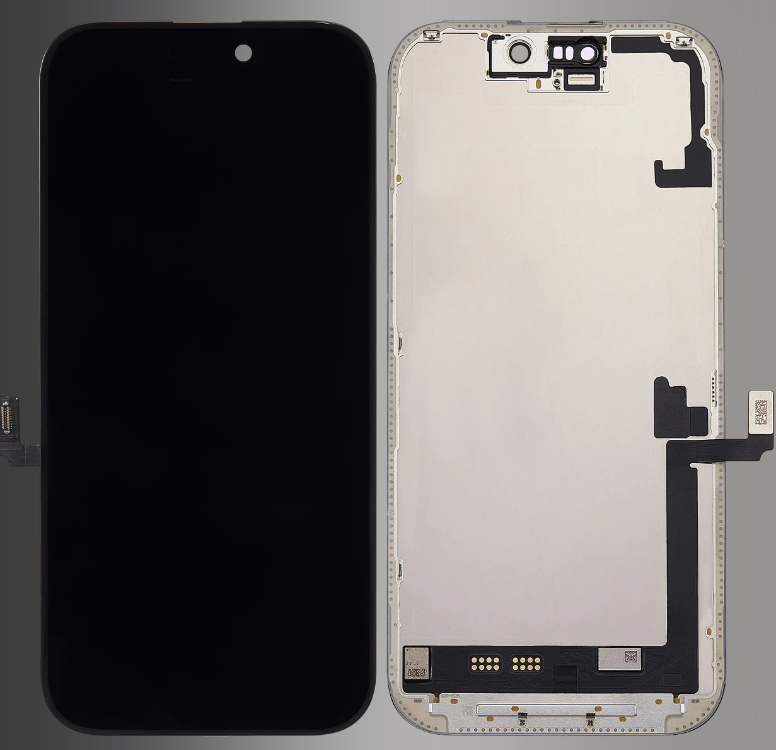

Premium Plus Soft OLED Replacement Screen Compatible with Apple iPhone 17

Restore your iPhone 17 display with our Premium Plus Soft OLED Replacement Screen, positioned as the highest aftermarket display tier we offer for this model.

Unlike lower-cost LCD replacement options, this screen uses Soft OLED technology, providing a thinner and more flexible display structure that is much closer in design to the OLED technology used in the original iPhone 17.

The Premium Plus tier is intended for customers and technicians who prioritize:

• OLED-level black reproduction

• Better contrast

• Better viewing characteristics than LCD

• Reduced display thickness

• Lower rigid-panel stress compared with hard OLED

• 120Hz-compatible display operation

• A more original-like overall viewing experience than entry-level aftermarket screens

This is an aftermarket replacement display assembly and is not a genuine Apple display.

Compatible Model

Compatible with:

• Apple iPhone 17

Known iPhone 17 model numbers include:

• A3258 — United States / Puerto Rico

• A3519 — Canada and selected other regions

• A3520 — selected international markets

• A3521 — China mainland

For Canadian customers, the commonly applicable model is:

A3519

Always verify the exact device before ordering.

Not Compatible With

This screen is not compatible with:

• iPhone 17 Pro

• iPhone 17 Pro Max

• iPhone Air

• iPhone 17e

• iPhone 16

• iPhone 16 Pro

• Other iPhone models

Similar display size does not guarantee compatibility.

Original iPhone 17 Display Reference

Apple equips the iPhone 17 with a:

• 6.3-inch Super Retina XDR display

• OLED panel

• 2622 × 1206 resolution

• 460 ppi

• Dynamic Island

• Always-On display

• ProMotion technology

• Adaptive refresh rates up to 120Hz

• HDR display

• True Tone

• Wide Colour P3

• Haptic Touch

The original Apple display is also specified with:

• Typical brightness up to 1000 nits

• HDR peak brightness up to 1600 nits

• Outdoor peak brightness up to 3000 nits

• Minimum brightness down to 1 nit

• 2,000,000:1 typical contrast ratio

• Oleophobic fingerprint-resistant coating

• Anti-reflective coating

These specifications describe the original Apple display and should not be interpreted as guaranteed specifications for this aftermarket replacement panel.

Premium Plus Tier

Our Premium Plus tier represents a Soft OLED aftermarket display.

For iPhone 17, the general tier structure is:

Regular

Lower-cost LCD replacement.

Best suited for customers prioritizing price over original display characteristics.

Premium

Higher-grade aftermarket OLED or equivalent upgraded replacement option depending on availability.

Premium Plus

Soft OLED, selected for customers who want the closest aftermarket experience to the original OLED construction without purchasing a genuine Apple display.

Premium Plus is our recommended aftermarket tier when display quality is the priority.

Soft OLED Technology

Soft OLED uses a flexible OLED substrate rather than the rigid glass-based substrate commonly associated with Hard OLED panels.

Potential advantages include:

• Thinner construction

• Better flexibility

• Reduced brittleness compared with Hard OLED

• More original-like panel structure

• Better tolerance of minor chassis stress

• Better overall fit in many repair situations

Soft OLED should still be handled carefully.

It can be damaged by:

• Bending

• Folding

• Pressure

• Sharp tools

• Improper installation

• Frame deformation

OLED vs. LCD

OLED and LCD operate differently.

OLED

Each pixel produces its own light.

Potential benefits include:

• True black reproduction

• Higher perceived contrast

• No conventional LCD backlight

• Thinner panel construction

• Better dark-scene performance

LCD

LCD panels require a backlight.

Compared with OLED, an LCD replacement may have:

• Raised black levels

• Lower contrast

• Increased thickness

• Different viewing characteristics

• Greater power draw under some conditions

For an iPhone originally designed around OLED, Soft OLED is generally the more appropriate aftermarket technology when budget allows.

Soft OLED vs. Hard OLED

Both are OLED technologies, but their physical construction differs.

Soft OLED

Typically offers:

• Flexible substrate

• Reduced brittleness

• Better shock tolerance compared with rigid OLED construction

• Thinner profile

• More original-like construction

Hard OLED

Typically uses a rigid substrate.

Potential disadvantages can include:

• Increased brittleness

• Greater sensitivity to frame pressure

• Higher chance of internal OLED damage during impact

This is one reason we position Soft OLED as our Premium Plus tier.

120Hz Compatibility

The iPhone 17 supports ProMotion adaptive refresh rates up to 120Hz.

Current aftermarket Soft OLED assemblies for iPhone 17 are available with 120Hz support.

This Premium Plus listing is intended for a 120Hz-compatible Soft OLED screen.

Actual refresh behaviour remains controlled by:

• iPhone hardware

• iOS

• Application

• Battery state

• Device temperature

• Power-management conditions

The panel does not independently force the phone to remain at 120Hz at all times.

ProMotion Operation

Apple's ProMotion system dynamically changes refresh rate based on content and system conditions.

Normal operation may vary between lower and higher refresh rates.

A compatible replacement display should allow the phone to continue operating its supported refresh-rate system.

However, aftermarket display behaviour may not perfectly match genuine Apple calibration under every condition.

Display Quality

Premium Plus Soft OLED is selected to provide strong aftermarket performance in areas such as:

• Colour reproduction

• Contrast

• Black levels

• Touch response

• Viewing angles

• Motion clarity

• Overall display appearance

Exact performance may vary slightly between:

• Manufacturing batches

• Panel suppliers

• Production revisions

This is normal for aftermarket replacement components.

Brightness Notice

The original Apple iPhone 17 display has extremely high published brightness specifications.

This aftermarket Premium Plus display should not be assumed to reproduce Apple’s exact:

• 1000-nit typical brightness

• 1600-nit HDR peak

• 3000-nit outdoor peak

unless those values are specifically published for the exact panel supplied.

Aftermarket Soft OLED generally aims to provide strong brightness and visibility, but exact performance may differ from a genuine Apple panel.

Colour Accuracy

The panel is selected for improved colour quality compared with lower-cost replacement screens.

However, colour reproduction may differ slightly from an original Apple display.

Possible differences may include:

• White balance

• Colour temperature

• Saturation

• Gamma

• Brightness uniformity

These differences do not necessarily indicate a defect.

Black Levels

Because this is OLED, black pixels can turn off rather than relying on a backlight.

This can provide:

• Deep blacks

• Strong perceived contrast

• Better dark-mode appearance

• Improved dark-scene viewing

This is one of the main advantages of OLED over LCD replacement panels.

Viewing Angles

Soft OLED generally provides strong viewing angles compared with LCD replacement screens.

Brightness or colour may still shift slightly at extreme viewing angles.

The exact performance depends on the panel manufacturing batch.

Touchscreen Function

The display assembly includes capacitive touchscreen functionality.

After installation, verify:

• Tapping

• Typing

• Swiping

• Scrolling

• Multi-touch

• Pinch-to-zoom

• Long presses

• Edge gestures

• Home gesture

• Control Centre

• Notification Centre

Touch problems can also be caused by:

• Bent frame

• Logic-board damage

• Connector damage

• Installation damage

• Software faults

• Previous liquid exposure

A replacement screen cannot correct unrelated device faults.

Dynamic Island Compatibility

The screen is designed around the iPhone 17 front-display layout.

Normal Dynamic Island operation depends on:

• Proper display installation

• Original front sensor system

• Original TrueDepth components

• Working logic-board hardware

• iOS

The replacement display does not replace the Face ID hardware.

Face ID

Face ID components are separate from the screen itself.

Proper care must be taken with the original front-sensor and TrueDepth components during repair.

Face ID may fail if:

• Original components are damaged

• Flex cables are torn

• Sensors are contaminated

• The phone has previous repair damage

• Logic-board faults are present

The replacement screen does not restore a pre-existing Face ID problem.

Always-On Display

The iPhone 17 supports Always-On Display.

A compatible OLED replacement can physically display this function.

Actual operation remains controlled by:

• iOS

• Device settings

• Hardware compatibility

• Panel behaviour

Aftermarket panels may not reproduce every aspect of original Apple power-management behaviour identically.

True Tone

True Tone functionality may depend on:

• Original display data

• Repair method

• Software support

• Calibration procedures

• iOS version

• Parts pairing behaviour

Do not assume True Tone will automatically remain available simply because the screen is physically compatible.

Where applicable, original display information should be preserved or transferred using appropriate professional procedures.

Display Verification and Parts Pairing

Modern iPhones may recognize replacement components through Apple’s parts and repair systems.

Depending on:

• iOS version

• Screen type

• Replacement-part origin

• Repair process

the device may display information regarding the installed screen.

An aftermarket Premium Plus screen should not be advertised as a genuine Apple display.

It may not receive the same system verification status as a genuine Apple part.

Parts & Service History

The iPhone may record display replacement information under:

Settings > General > About > Parts & Service History

Exact wording and behaviour depend on:

• iOS version

• Replacement part

• Repair procedure

• Apple software policies

This listing does not guarantee any specific Parts & Service History message.

Genuine Apple vs. Premium Plus

This product is:

Aftermarket Soft OLED

It is not:

• Genuine Apple

• Apple Service Pack

• Used OEM pull

• Refurbished original Apple OLED

Customers who specifically require a genuine Apple display should choose a genuine Apple replacement option where available.

Why Choose Premium Plus?

Premium Plus is best suited for users who prioritize:

• OLED rather than LCD

• Better black levels

• Better contrast

• Soft OLED construction

• 120Hz-compatible operation

• Better viewing experience

• More original-like panel structure

• Higher aftermarket quality

It is generally a better long-term choice than a budget LCD for customers who care about display performance.

Frame Condition Is Important

Before installation, inspect the iPhone frame carefully.

Do not install the screen onto a frame that is:

• Bent

• Twisted

• Crushed

• Severely dented

• Deformed near display clips

• Damaged around the corners

A damaged frame can create pressure against the OLED panel and cause:

• Internal OLED cracking

• Black spots

• Vertical lines

• Flickering

• Touch issues

• Complete display failure

Frame problems should be corrected before installation.

OLED Pressure Sensitivity

OLED panels are sensitive to concentrated pressure.

Avoid pressing directly on:

• Display centre

• Display edges

• Flex-cable area

• Connector area

• Dynamic Island region

Pressure damage may occur even when the outer glass remains visibly unbroken.

Internal OLED Damage

OLED damage does not always require visible external glass cracking.

Internal OLED failure may appear as:

• Black spots

• Green lines

• White lines

• Purple bleeding

• Flickering

• Partial image

• No image

• Touch with no display

This type of damage is typically caused by physical force or installation pressure and is not considered a manufacturing defect.

Installation Skill Requirement

This replacement screen is intended for:

• Professional repair technicians

• Experienced DIY users

Installation requires appropriate:

• Tools

• Heating equipment where necessary

• Opening techniques

• ESD precautions

• Adhesive removal

• Connector handling

• Screen alignment

Incorrect installation can damage:

• Replacement screen

• Battery

• Front sensor flex

• Camera system

• Logic board

• Frame

• Existing seals

DIY Installation Risk

DIY installation is performed at the purchaser’s own risk.

Potential risks include:

• OLED damage

• Torn flex cable

• Broken connector

• Battery puncture

• Face ID damage

• Camera damage

• Logic-board damage

• Loss of water resistance

• Data loss

Professional installation is recommended.

Pre-Installation Testing

Before fully installing the screen:

1. Disconnect the battery where appropriate.

2. Connect the replacement display carefully.

3. Reconnect the battery.

4. Power on the phone.

5. Test image.

6. Test touch across the entire display.

7. Test brightness.

8. Test colour.

9. Test scrolling.

10. Test all screen areas.

11. Inspect for lines, spots, flicker, or dead areas.

Only complete final installation after confirming proper operation.

Test Before Removing Protective Films

Where possible, complete functional testing before:

• Removing protective films

• Applying adhesive

• Final sealing

• Fully closing the device

Once a component shows signs of installation damage or permanent use, warranty eligibility may be affected.

Battery Safety

Always disconnect the battery before connecting or disconnecting display flex cables.

Working on display connectors while the battery remains connected can increase the risk of:

• Short circuit

• Connector damage

• Display damage

• Logic-board damage

Follow appropriate repair procedures.

Connector Handling

Display connectors are delicate.

Never:

• Force a connector

• Press at an angle

• Use metal tools directly on connector pins

• Connect while visibly misaligned

A bent connector pin can damage both:

• Screen

• Logic board

Adhesive

Replacement display adhesive may be required for final installation.

Unless explicitly included in the product package:

Adhesive is not included.

Use the correct model-specific adhesive where required.

No Tools Included

Unless explicitly stated otherwise:

No tools are included.

Professional tools may be required for installation.

Water Resistance

Opening an iPhone compromises the original factory seal.

Installing a new perimeter adhesive can help reduce dust and moisture ingress, but it does not guarantee restoration of Apple’s original IP68 rating.

The phone should not be represented as factory-waterproof after repair.

Water-Resistance Disclaimer

Even when installed correctly:

• Original waterproof testing is not reproduced

• Frame damage may prevent proper sealing

• Adhesive quality may vary

• Previous repairs may affect sealing

Avoid unnecessary water exposure after repair.

Screen Protector Recommendation

A quality tempered-glass screen protector is recommended after installation.

A protector can help reduce:

• Surface scratches

• Light impact damage

• Everyday wear

No screen protector can prevent every OLED failure.

Case Recommendation

A protective case with raised screen edges is also recommended.

Cases may help reduce:

• Corner impact

• Frame deformation

• Direct glass contact

Severe impacts can still damage the OLED panel.

Product Quality Notes

Premium Plus is positioned as a higher-grade aftermarket screen.

However, aftermarket components should not be represented as identical to genuine Apple parts.

Possible differences compared with genuine Apple may include:

• Maximum brightness

• Colour calibration

• Power efficiency

• Coating quality

• Outdoor visibility

• Minimum brightness

• HDR behaviour

• True Tone behaviour

• Long-term consistency

Premium Plus is selected to minimize these compromises while keeping the product within an aftermarket price category.

Batch Variation

Aftermarket display specifications can evolve over time.

The supplied panel may be sourced from different production batches while remaining within the Premium Plus Soft OLED tier.

Minor differences in:

• Flex markings

• Backplate appearance

• Controller markings

• Packaging

• Surface coating

do not necessarily indicate a different quality tier.

Product Condition

This listing is for a new aftermarket Premium Plus replacement screen.

Inspect immediately after receiving it.

Before installation, check for:

• Cracked glass

• Damaged flex cables

• Bent connectors

• Shipping damage

• Panel deformation

Do not install a visibly damaged component.

Package Contents

Unless otherwise stated, the package includes:

• One Premium Plus Soft OLED Replacement Screen Assembly compatible with iPhone 17

The following are not included unless specifically listed:

• Installation tools

• Display adhesive

• Waterproof seal

• Screen protector

• Front sensor assembly

• Earpiece speaker

• Genuine Apple components

• Repair service

Important Notes

• Compatible with Apple iPhone 17

• Canadian iPhone 17 model A3519 supported

• Premium Plus tier

• Soft OLED technology

• 120Hz-compatible aftermarket panel

• OLED black levels and contrast

• Thinner and more flexible than LCD

• More impact-tolerant construction than typical Hard OLED

• Designed for normal Dynamic Island use

• Aftermarket component

• Not genuine Apple

• Not Apple Service Pack

• Not refurbished OEM unless explicitly stated

• True Tone and system verification behaviour may depend on repair procedure and iOS

• Professional installation recommended

• Test before final installation

• Disconnect battery before connecting or disconnecting screen

• Do not install into a bent or damaged frame

• No tools included

• Adhesive not included unless explicitly stated

• Water resistance is not guaranteed after repair

• Covered by 3C-Easy Markham’s 30-Day Limited Parts Warranty

3C-Easy Markham 30-Day Limited Parts Warranty

This replacement screen is covered by 3C-Easy Markham’s 30-Day Limited Parts Warranty against qualifying manufacturing defects.

The warranty applies to the replacement component itself.

Proof of purchase may be required.

Potential Warranty Coverage

Qualifying manufacturing defects may include:

• No image under proper installation conditions

• Confirmed defective touch function

• Abnormal display lines caused by manufacturing defect

• Confirmed panel malfunction not caused by physical damage

• Other verified component defects

Final warranty eligibility requires inspection.

Test Before Installation

Customers and technicians should test the screen before completing installation.

Verify:

• Image

• Touch

• Brightness

• Display uniformity

• Connector function

Testing before final assembly helps distinguish manufacturing defects from installation damage.

Warranty Exclusions

The limited warranty does not cover:

• Cracked glass

• OLED pressure damage

• Internal OLED cracking

• Black spots

• Ink-like bleeding

• Vertical lines caused by impact

• Frame-pressure damage

• Bent or folded panel

• Torn flex cables

• Damaged connectors

• Improper installation

• Liquid damage

• Heat damage

• Battery puncture

• Short circuit

• Damage caused by defective phone hardware

• Damage caused by bent or damaged frame

• Modification

• Abuse

• Misuse

OLED Damage Without Outer Glass Damage

Internal OLED damage can occur without a visible crack in the front glass.

Examples include:

• Black spots

• Green lines

• Purple bleeding

• Flicker

• Partial display loss

If inspection indicates pressure, bending, impact, or installation damage, the issue is not covered as a manufacturing defect.

Device Damage Is Not Covered

The component warranty does not cover damage to:

• iPhone logic board

• Battery

• Frame

• Cameras

• Face ID components

• Charging system

• Other internal components

• User data

Installation and use are at the purchaser’s own risk.

DIY Acknowledgment

This product is intended for customers with appropriate:

• Repair knowledge

• Tools

• Experience

By purchasing for DIY installation, the customer assumes the risks associated with opening and servicing the device.

Intellectual Property Disclaimer

Apple, iPhone, Super Retina XDR, ProMotion, Dynamic Island, True Tone, Face ID, Ceramic Shield, and related trademarks and product names belong to Apple Inc.

This product is an aftermarket replacement component.

3C-Easy Markham is not affiliated with, sponsored by, authorized by, or endorsed by Apple Inc.

All trademarks are used solely to identify compatibility.
