Replacement Screen for Google Pixel 4

Aftermarket OLED Replacement Screen with Frame for Google Pixel 4

Restore image quality, touchscreen functionality, and front-frame fitment on a compatible Google Pixel 4 with this aftermarket OLED replacement screen assembly supplied with a preinstalled frame.

The Google Pixel 4 uses a 5.7-inch FHD+ OLED display with a resolution of 1080 × 2280 pixels and Smooth Display operation at refresh rates of up to 90 Hz.

This aftermarket OLED option is intended for customers and repair professionals seeking a more economical alternative to a refurbished original or genuine Google service display while retaining OLED characteristics such as individually illuminated pixels, true black levels, high contrast, and a thinner display structure than conventional LCD alternatives.

Because the display is already installed in a compatible middle frame, there is no need to separate and rebond the replacement OLED panel to the phone’s original frame. However, the Pixel 4 requires extensive disassembly, and most internal components must be transferred from the original housing. Display replacement is performed through the rear of the device rather than by lifting the screen directly from the front.

Compatible Models

Google Pixel 4

• G020I — North American variant
• G020M — Selected international or regional variant
• Other compatible Google Pixel 4 regional variants where the frame, display connector, antenna layout, and internal mounting points match

Please confirm the complete model number before ordering. The model number may be checked under:

Settings > About Phone > Regulatory Labels

It may also appear on the original packaging, purchase documentation, or device information label.

Do not select this component based only on the Pixel 4 name. Regional versions may differ in:

• Cellular antenna configuration
• Internal brackets
• SIM and eSIM configuration
• Carrier-specific hardware
• Frame openings
• Button assemblies
• Connector placement
• Motion Sense availability
• Supporting components

Available Option

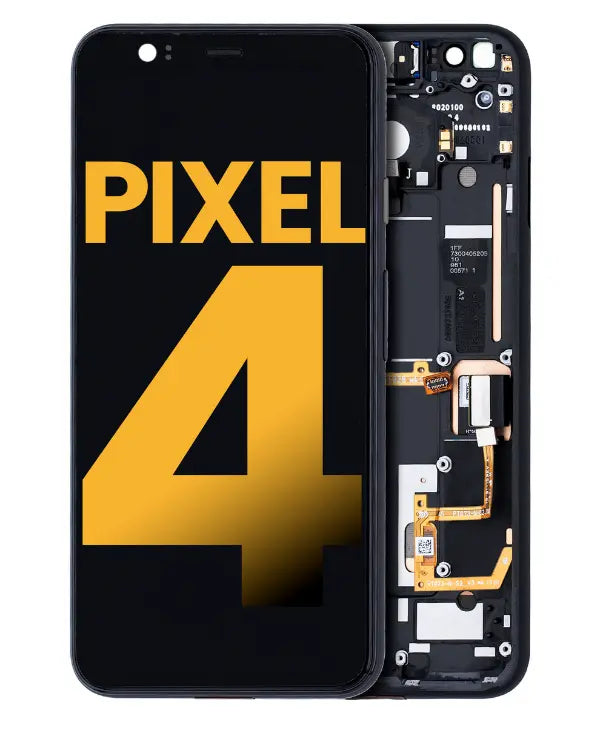

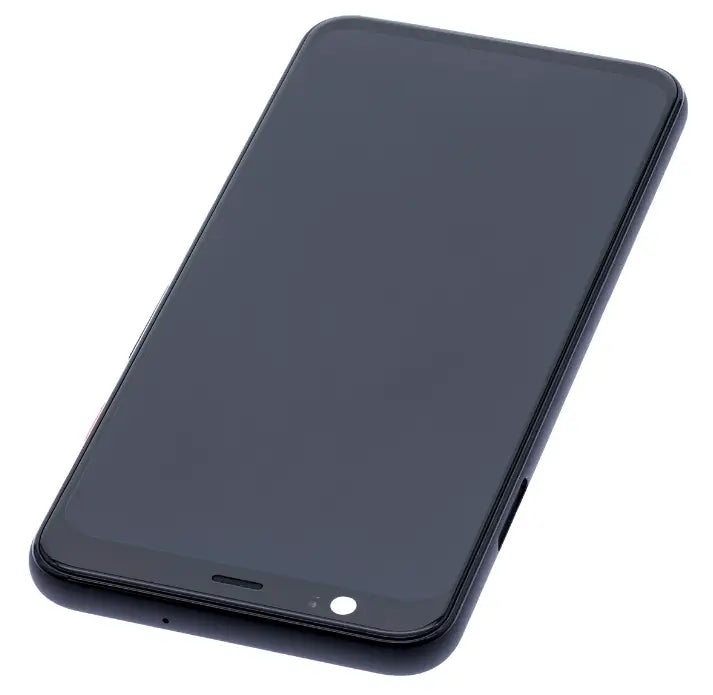

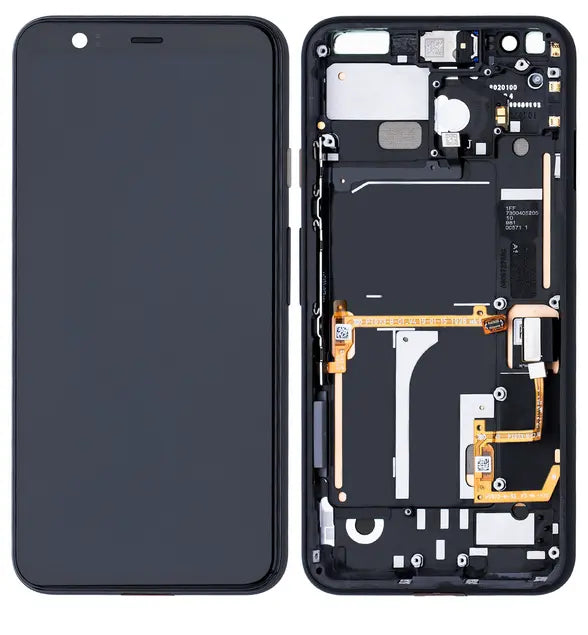

Aftermarket OLED Screen with Frame

This option includes:

• Aftermarket OLED display panel
• Integrated capacitive touchscreen
• Compatible preinstalled middle frame

This is not a refurbished original Google OLED panel and is not a genuine Google service display.

The assembly is intended to offer better black levels, contrast, and overall display characteristics than a typical aftermarket LCD replacement while remaining more economical than many original-display options.

Frame-Colour Selection

The replacement frame may be available in colours corresponding to original Pixel 4 finishes.

Possible colours may include:

• Just Black
• Clearly White
• Oh So Orange
• Other compatible frame finishes depending on supplier availability

Confirm the selected frame colour before ordering.

Frame shade, surface finish, button colour, antenna-line appearance, and cosmetic details may differ slightly from the original housing or product photographs.

Key Features

• Aftermarket OLED replacement screen for Google Pixel 4
• Compatible with selected G020-series Pixel 4 variants
• Supplied with a preinstalled middle frame
• Integrated capacitive touchscreen
• 5.7-inch display format
• FHD+ 1080 × 2280 resolution format
• OLED display construction
• Designed to support Smooth Display operation where compatible
• Original-style true black levels
• High OLED contrast
• Wide viewing angles
• Designed to restore image and touchscreen functionality
• May resolve cracked glass, failed touch, damaged OLED, lines, black spots, or a black screen
• With-frame construction avoids rebonding the OLED panel to the original frame
• More economical than many original-display replacement options
• Professional installation strongly recommended

Common Screen-Failure Symptoms

Replacement may be appropriate when the phone:

• Has cracked or shattered front glass
• Displays no image
• Shows black spots or spreading OLED damage
• Shows green, white, pink, or vertical lines
• Produces flickering or intermittent images
• Has discolouration or image distortion
• Shows OLED bleeding
• Has reduced or uneven brightness
• Displays an image but does not respond to touch
• Has areas of missing or inaccurate touch response
• Registers unintended or ghost touches
• Produces sounds or vibrations while the screen remains black
• Has internal OLED damage without an external glass crack
• Has a bent or damaged original middle frame
• Has separated display layers
• Fails after impact, pressure, twisting, or liquid exposure
• Shows abnormal high-refresh-rate behaviour
• Has damaged rounded display edges

These symptoms may also be caused by:

• Logic-board damage
• Display-connector damage
• Liquid ingress or corrosion
• Battery failure
• Charging or power-management faults
• Software or firmware problems
• Damaged internal flex cables
• Front-sensor damage
• Incorrect installation
• Another defective component

Proper diagnosis is recommended before replacing the screen assembly.

Aftermarket OLED Quality Notes

This product uses an aftermarket OLED panel rather than an original Google display.

Aftermarket OLED screens may show differences from the original factory display in:

• Maximum brightness
• Colour accuracy
• White balance
• Colour temperature
• Low-brightness uniformity
• Viewing angles
• Touch sensitivity
• Refresh-rate consistency
• Power consumption
• Display thickness
• Oleophobic coating
• Cover-glass contour
• Black-border dimensions
• Panel alignment
• Frame construction
• Long-term reliability
• Always-On Display appearance
• Motion clarity
• Sunlight visibility

Minor cosmetic or performance variation that does not materially prevent normal operation may be consistent with the aftermarket nature of the component.

An aftermarket OLED screen is not equivalent to:

• A brand-new genuine Google service display
• A refurbished original Google OLED display
• The original factory-installed screen

OLED Display Characteristics

OLED displays illuminate individual pixels and do not use a conventional separate backlight.

Potential benefits include:

• True black levels
• High contrast
• Strong dark-scene performance
• Wide viewing angles
• Thin panel construction
• Fast pixel response
• Efficient operation with darker screen content
• Suitable presentation of Always-On Display content
• Better black levels than typical LCD replacements

OLED panels are sensitive to:

• Impact
• Pressure
• Bending
• Twisting
• Excessive heat
• Internal debris
• Uneven frame surfaces
• Incorrect component placement
• Battery swelling
• Incorrect screw installation

Internal OLED damage may occur even when the outer glass remains intact.

Smooth Display and Refresh-Rate Notice

The original Pixel 4 supports Smooth Display operation at refresh rates of up to 90 Hz. Actual refresh-rate behaviour depends on device settings, software, displayed content, brightness, temperature, battery condition, and the capabilities of the replacement screen.

Because this is an aftermarket screen, exact original refresh-rate behaviour cannot be guaranteed.

After installation, test:

• Standard display operation
• Scrolling smoothness
• Touch responsiveness
• Motion clarity
• Smooth Display operation
• Screen wake and sleep
• Always-On Display
• Low- and high-brightness operation
• Video playback
• Battery drain during normal use

Refresh-rate or motion issues may also be caused by:

• Display settings
• Battery Saver
• Android software
• Device temperature
• Battery condition
• Logic-board faults
• Incompatible screen revisions
• Installation damage

A refresh-rate issue does not automatically confirm that the replacement screen is defective.

Touchscreen Notice

The screen includes an integrated capacitive touchscreen layer.

After installation, test:

• Standard taps
• Swipe gestures
• Long presses
• Pinch-to-zoom
• Edge and corner response
• Keyboard input
• Gesture navigation
• Notification-panel access
• App navigation
• Multi-touch input
• Touch operation while charging

Touch problems may also be caused by:

• Damaged display connectors
• Bent connector pins
• Logic-board faults
• Incorrect screen alignment
• Internal pressure
• Housing distortion
• Incompatible chargers
• Software problems
• Another defective component

Face Unlock and Front-Sensor Notice

The Google Pixel 4 uses front-facing hardware for Face Unlock. The device also includes Motion Sense technology supported by Google’s Soli radar system.

These front-sensor components are separate from the replacement display and frame.

Screen replacement does not repair or replace:

• Infrared face-unlock cameras
• Flood illuminator
• Dot-related or depth-sensing hardware
• Front-facing camera
• Soli radar hardware
• Proximity sensor
• Ambient-light sensor circuitry
• Logic-board sensor circuits

Improper disassembly, flex-cable damage, connector damage, pressure, contamination, or incorrect reassembly may affect Face Unlock, Motion Sense, proximity sensing, or automatic brightness.

After installation, test:

• Face Unlock
• Front-facing camera
• Proximity sensing during calls
• Automatic brightness
• Screen wake behaviour
• Motion Sense features where enabled
• Tap-to-wake
• Lift-to-check
• Always-On Display

Damage to paired or specialized sensor components may not be repairable through screen replacement alone.

Motion Sense and Soli Notice

Motion Sense features may depend on:

• Device region
• Software version
• Supported applications
• Device settings
• Soli hardware condition
• Correct antenna and sensor installation
• Front-sensor alignment

A replacement frame must not obstruct or incorrectly position the supporting sensor and antenna components.

Motion Sense failure after repair may result from:

• Incorrect component transfer
• Damaged flex cables
• Missing brackets
• Sensor misalignment
• Frame incompatibility
• Logic-board damage
• Regional feature restrictions
• Software configuration

Motion Sense operation cannot be guaranteed when the original sensor hardware is damaged.

Ambient-Light and Proximity-Sensor Notice

The ambient-light and proximity systems are separate from the aftermarket OLED panel but may interact with display brightness and call-screen behaviour.

After installation, test:

• Automatic brightness adjustment
• Screen shutoff during calls
• Screen wake after moving the phone away from the face
• Always-On Display brightness
• Brightness transitions
• Outdoor visibility

Sensor problems may be caused by:

• Misalignment
• Dust or adhesive
• Missing brackets or gaskets
• Damaged sensor flex cables
• Incorrect frame construction
• Software faults
• Logic-board damage

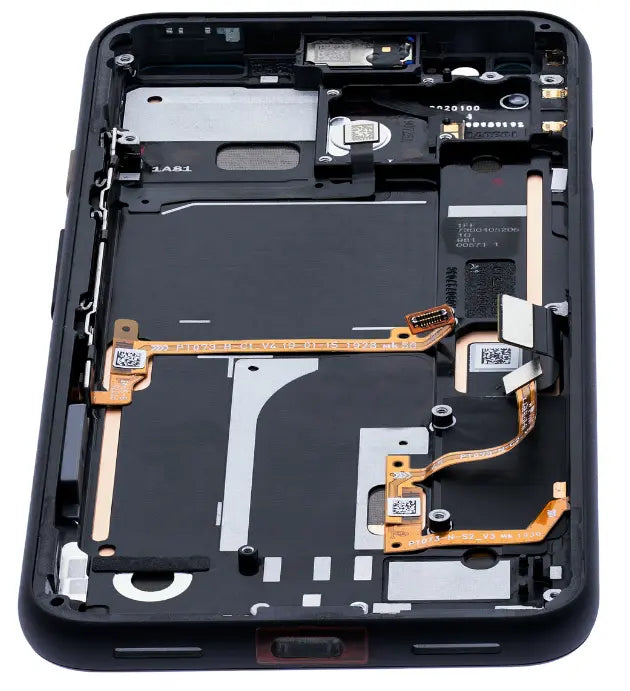

Frame and Internal-Component Transfer Notice

This screen is supplied with a frame, but installation requires transferring compatible internal components from the original phone.

Components that may require transfer include:

• Logic board
• Battery
• Charging-port assembly
• Rear-camera modules
• Front camera and Face Unlock components
• Soli and Motion Sense components
• Earpiece speaker
• Loudspeaker
• Vibration motor
• Wireless-charging coil
• NFC components
• Side-button flex cables
• Antennas
• SIM-related hardware
• Thermal pads
• Brackets
• Shields
• Screws
• Adhesive elements
• Back glass

The exact transfer requirements depend on which small parts are preinstalled in the replacement frame.

Compare the replacement assembly carefully with the original phone before beginning installation.

Rear-Entry Repair Notice

The Pixel 4 must generally be opened from the rear to access the internal components required for display replacement. The back panel is strongly bonded, and a screen repair can require extensive disassembly.

Opening the device may damage:

• Back glass
• Back-cover finish
• Wireless-charging coil
• NFC components
• Internal antennas
• Adhesive seals
• Camera glass
• Flex cables

Use controlled heat and appropriate opening tools.

Do not insert tools excessively deep around the rear-cover perimeter.

Frame Fitment Notice

A screen-with-frame repair reduces the risk associated with removing and rebonding an OLED panel, but correct fitment still depends on:

• Correct model and regional frame
• Accurate internal-component transfer
• Correct screw placement
• Proper antenna installation
• Correct flex-cable routing
• Undamaged brackets
• Proper back-cover preparation
• Complete removal of old adhesive
• Suitable replacement adhesive
• Even pressure during curing

Incorrect assembly may cause:

• Raised rear-cover edges
• Display pressure
• Antenna or reception problems
• Button misalignment
• Charging problems
• Camera alignment issues
• Wireless-charging failure
• NFC failure
• Overheating
• Touch problems
• Internal OLED damage
• Premature separation

Battery and Internal-Pressure Notice

Inspect the battery before transferring it into the replacement frame.

Do not reuse a battery showing:

• Swelling
• Deformation
• Puncture damage
• Leakage
• Overheating
• Torn wrapping
• Unusual odour
• Pressure against the screen or rear cover

A swollen or damaged battery may cause:

• Internal OLED pressure damage
• Cracked glass
• Screen lifting
• Rear-cover separation
• Touch failure
• Short circuits
• Excessive heat
• Fire or chemical hazards
• Logic-board damage

Replace a swollen or physically damaged battery before completing the screen repair.

Regional Compatibility Notice

Pixel 4 models sold in different regions may use different:

• Cellular antenna layouts
• Internal brackets
• Carrier-specific components
• SIM configurations
• Frame cut-outs
• Button assemblies
• Flex cables
• Connector arrangements
• Motion Sense configurations

Before installation, compare:

• Complete model number
• Frame shape
• Antenna openings
• Flex-cable layout
• Button positions
• SIM-tray position
• Internal mounting posts
• Printed part numbers
• Connector locations
• Camera openings
• Wireless-charging and NFC clearances
• Front-sensor openings

Installing an incompatible frame may result in poor reception, incorrect fitment, damaged flex cables, missing mounting points, sensor problems, or other functional failures.

Model Compatibility Notice

This replacement assembly is intended only for the standard Google Pixel 4.

It is not intended for:

• Google Pixel 4 XL
• Google Pixel 4a
• Google Pixel 4a 5G
• Google Pixel 3
• Google Pixel 5
• Other Pixel models

The Pixel 4 and Pixel 4 XL use different screen dimensions and display specifications. The standard Pixel 4 uses a 5.7-inch display, while the Pixel 4 XL uses a larger 6.3-inch display.

Before ordering, confirm:

• The device is a Google Pixel 4.
• The device is not a Pixel 4 XL or Pixel 4a.
• The complete model number matches.
• The frame colour is correct.
• The connector and antenna layouts match.
• The replacement frame has the correct sensor openings.

Installation Notes

Professional installation is strongly recommended.

Screen-with-frame replacement requires extensive disassembly and transfer of multiple delicate internal components.

Improper handling may damage:

• Aftermarket OLED display
• Touchscreen
• Logic board
• Battery
• Cameras
• Face Unlock hardware
• Soli or Motion Sense components
• Charging-port assembly
• Wireless-charging coil
• NFC components
• Antennas
• Side-button flex cables
• Speakers
• Microphones
• Internal connectors
• Back glass

Before final installation:

• Confirm the complete device model number.
• Confirm regional and frame compatibility.
• Confirm the selected frame colour.
• Compare the replacement assembly with the original frame.
• Inspect the screen, frame, flex cables, and connectors.
• Check for shipping or handling damage.
• Inspect the battery for swelling or deformation.
• Power off the phone.
• Apply controlled heat to the rear cover.
• Avoid inserting opening tools excessively deep.
• Disconnect the battery before connecting or disconnecting display components.
• Keep screws organized by position and length.
• Transfer all required thermal pads, brackets, meshes, seals, and cushions.
• Do not force connectors into place.
• Do not sharply bend, fold, puncture, or stretch flex cables.
• Avoid touching camera lenses and sensor surfaces.
• Confirm correct Face Unlock and front-sensor alignment.
• Confirm correct Soli, antenna, NFC, and wireless-charging-coil placement.
• Test the display before resealing the back cover.
• Test black, white, grey, red, green, and blue backgrounds.
• Test brightness at low and high levels.
• Test automatic brightness.
• Test Always-On Display.
• Test Smooth Display operation where available.
• Test touch response across the complete display.
• Test all edges and corners.
• Test multi-touch gestures.
• Test Face Unlock.
• Test Motion Sense where supported.
• Test proximity sensing.
• Test the front and rear cameras.
• Test the earpiece speaker and loudspeaker.
• Test all microphones.
• Test vibration.
• Test wired charging and USB connectivity.
• Test wireless charging.
• Test NFC where applicable.
• Test Wi-Fi, Bluetooth, cellular reception, and GPS.
• Check for overheating or abnormal battery drain.
• Confirm that the rear cover sits evenly.
• Do not permanently seal the phone until all functions have been tested.

Bent pins, damaged sockets, torn flex cables, excessive heat, pressure, incorrect screw placement, or improper component transfer may permanently damage the screen or phone.

Water-Resistance Notice

Opening the Google Pixel 4 compromises its original factory seal.

Replacement adhesive may help reduce exposure to dust and incidental moisture, but the original IP rating and factory water resistance cannot be restored or guaranteed after repair.

A repaired device should not be relied upon for:

• Swimming
• Showering
• Underwater photography
• Exposure to steam
• Heavy rain
• High-humidity environments
• Other intentional liquid exposure

Sealing performance may be reduced by:

• Frame damage
• Back-glass damage
• Adhesive quality
• Improper cleaning
• Uneven pressure
• Component misalignment
• Previous repairs
• Corrosion
• Production tolerances

Avoid exposing the repaired phone to water, steam, humidity, or other liquids.

Package Contents

• 1 × Aftermarket OLED replacement screen assembly for Google Pixel 4
• 1 × Compatible preinstalled middle frame

The following are not included unless specifically stated:

• Battery
• Back glass
• Cameras
• Face Unlock sensors
• Soli hardware
• Charging-port assembly
• Speakers
• Wireless-charging coil
• NFC components
• Logic board
• Tools
• Adhesive
• Clamps
• Installation service

Warranty

This component includes a 30-day limited parts-only warranty against confirmed manufacturing defects, subject to the applicable 3C-Easy Markham Component Warranty.

The warranty does not cover:

• Cracked, chipped, scratched, or shattered glass
• Internal OLED damage
• Black spots, lines, bleeding, or discolouration caused by impact or pressure
• Touch failure caused by installation damage
• Damage caused by a swollen battery
• Damage caused by incorrect component transfer
• Minor brightness, colour, white-balance, or uniformity variation consistent with an aftermarket OLED
• Differences from the original Google display
• Reduced maximum brightness
• Smooth Display or refresh-rate variation
• Always-On Display differences
• Face Unlock problems caused by original sensors, alignment, installation, software, or unrelated hardware
• Motion Sense or Soli problems
• Proximity- or ambient-light-sensor problems
• Torn, folded, punctured, stretched, or damaged flex cables
• Bent connector pins or damaged logic-board sockets
• Damaged antennas, cameras, or internal components
• Incorrect model, region, frame colour, or revision selection
• Installation in an incompatible device
• Improper installation
• Physical, impact, pressure, or twisting damage
• Liquid, moisture, or corrosion damage
• Damage caused by excessive heat
• Back-cover or adhesive failure
• Water-resistance or sealing limitations
• Display faults caused by the logic board
• Software, firmware, calibration, or compatibility limitations
• Damage to the battery or other components during installation
• Labour, diagnostics, installation, removal, shipping, or related repair costs

The screen must be connected and fully tested before final installation.

Remove protective films only after confirming image quality, touch response, brightness, frame fitment, sensor operation, and overall compatibility.

Components showing installation or physical damage may not qualify for warranty coverage.

Important Notes

• Aftermarket OLED replacement screen for Google Pixel 4.
• Supplied with a compatible preinstalled frame.
• Confirm the complete device model number before ordering.
• Confirm frame colour and regional compatibility.
• This screen is not compatible with the Pixel 4 XL, Pixel 4a, or Pixel 4a 5G.
• This is not a genuine Google service display.
• This is not a refurbished original Google OLED panel.
• Brightness, colour, touch response, refresh-rate behaviour, and power consumption may differ from the original screen.
• Smooth Display operation up to 90 Hz is device- and screen-dependent and cannot be guaranteed to match the original panel exactly.
• Internal components must be transferred from the original phone unless specifically included.
• Face Unlock and Motion Sense components are separate from the screen.
• Damage or misalignment of front-sensor hardware may affect Face Unlock, Motion Sense, proximity sensing, or automatic brightness.
• The Pixel 4 is opened from the rear and requires extensive disassembly for screen replacement.
• Check the battery for swelling before transferring it.
• Test image, touch, brightness, refresh rate, Face Unlock, Motion Sense, cameras, charging, wireless charging, NFC, audio, sensors, and connectivity before sealing the phone.
• No tools or adhesive are included unless specifically stated.
• Original water resistance cannot be restored or guaranteed after repair.
• Professional installation is strongly recommended.
• Product appearance, markings, frame shade, flex layout, included small parts, and packaging may vary between production batches.

Google, Pixel, Android, Smooth Display, Motion Sense, Soli, and related trademarks belong to Google LLC and are used only to identify product compatibility. 3C-Easy Markham is not affiliated with or endorsed by Google LLC.
