Replacement Charging Port Board for Samsung Galaxy Note 10 Lite, Note 10, and Note 10 Plus 5G

Replacement Charging Port Board for Samsung Galaxy Note 10 Series

Restore wired charging and related lower-board functions on a compatible Samsung Galaxy Note 10 series device with this replacement charging port board.

This internal component is designed to replace a damaged or defective USB-C charging port assembly affected by intermittent charging, failed USB connections, loose cable fitment, microphone problems, physical connector damage, or other hardware-related faults.

The Samsung Galaxy Note 10 Lite, Galaxy Note 10, and Galaxy Note 10 Plus 5G use different charging port boards. Select the exact phone model and model number before ordering, as these components are not interchangeable.

Compatible Models

Samsung Galaxy Note 10 Lite

• SM-N770F
• SM-N770F/DS
• Other SM-N770 variants where specifically indicated

Samsung Galaxy Note 10

• SM-N970F
• SM-N970F/DS
• SM-N970N
• SM-N970U
• SM-N970U1
• SM-N970W
• Other SM-N970 variants where specifically indicated

Samsung Galaxy Note 10 Plus 5G

• SM-N976B
• SM-N976B/DS
• SM-N976N
• SM-N976U
• SM-N976V
• SM-N976W
• Other SM-N976 variants where specifically indicated

Please confirm the exact model number under Settings > About Phone before ordering.

Regional, carrier-specific, and chipset versions may use different charging port boards, antenna contacts, connectors, or supporting components. Matching only the phone’s marketing name is not sufficient.

Available Options

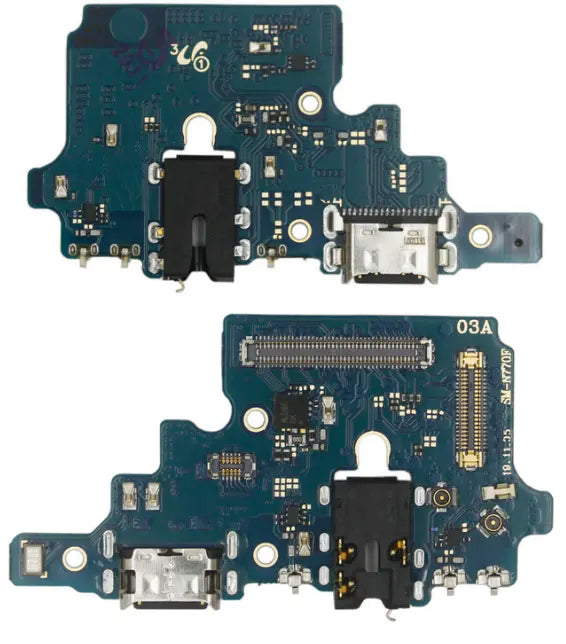

• Replacement charging port board for Samsung Galaxy Note 10 Lite

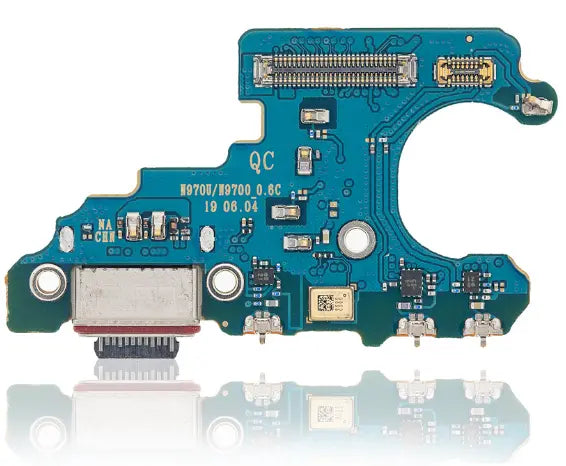

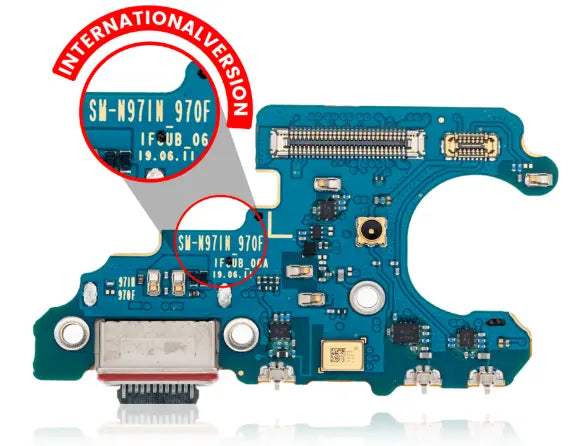

• Replacement charging port board for Samsung Galaxy Note 10

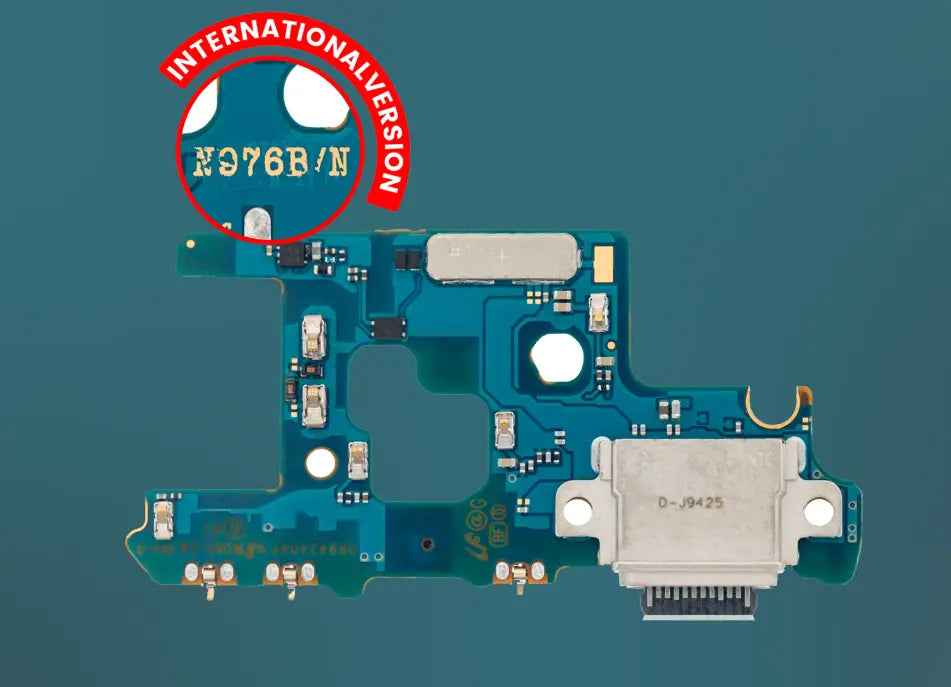

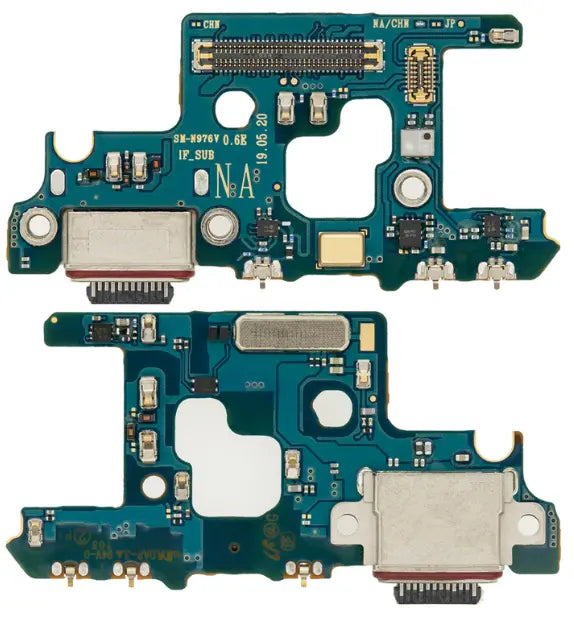

• Replacement charging port board for Samsung Galaxy Note 10 Plus 5G

Select the option that matches the exact device model and regional or carrier variant.

Key Features

• Model-specific USB-C charging port board
• Designed to restore wired charging when the original port is defective
• May restore USB data-transfer and computer-connection functionality
• May resolve certain lower-microphone or call-audio problems
• May include integrated microphone, antenna contacts, and other lower-board components
• Suitable for replacing a loose, damaged, corroded, or non-responsive charging port
• Modular board design may reduce the need for charging-port microsoldering
• Designed for internal installation
• Cost-effective alternative to replacing the complete device
• Professional installation strongly recommended
• Inspected or tested before shipment when applicable

Common Charging-Port Failure Symptoms

Replacement may be appropriate when the device:

• Does not charge through a USB-C cable
• Charges only when the cable is held at a particular angle
• Repeatedly connects and disconnects while charging
• Displays a moisture, accessory, or charging-related warning
• Is not detected by a computer
• Cannot complete USB data transfer
• Has a loose, bent, damaged, or corroded USB-C port
• Has compacted debris that cannot be safely removed
• Charges slowly despite using compatible charging equipment
• Does not activate Samsung fast charging
• Has poor microphone performance during calls or recordings
• Produces muffled, distorted, quiet, or intermittent lower-microphone audio
• Stops charging after impact or liquid exposure
• Charges wirelessly but not through the USB-C connector

These symptoms may also be caused by a defective battery, damaged USB-C cable, unsuitable power adapter, contaminated connector, charging-control circuit fault, mainboard damage, damaged interconnect flex cable, software problem, liquid ingress, or another defective component.

A persistent moisture warning may be caused by moisture, corrosion, contamination, software, the charging port board, its connector, or the mainboard. Replacing the board does not guarantee that the warning will be resolved.

Proper diagnosis is recommended before replacing the charging port board.

Product Quality Notes

This replacement charging port board may be aftermarket, refurbished original, pulled original, or otherwise sourced depending on the selected product option and available inventory.

Charging speed, USB-C connector fitment, microphone performance, data-transfer stability, antenna performance, board appearance, component markings, and included subcomponents may vary depending on the component grade and production batch.

Depending on the model and supplier, the charging port board may include:

• USB-C charging connector
• Lower microphone
• Antenna contacts
• Spring contacts
• Board connectors
• Supporting electronic components

Included components may vary. Compare the replacement board carefully with the original part before installation.

A replacement charging port board will not resolve charging problems caused by the battery, mainboard, charging-control circuitry, damaged board connectors, interconnect flex cable, unsuitable accessories, or software.

Regional, Carrier, and 5G Compatibility Notice

Samsung Galaxy Note 10 series devices were produced in multiple regional, carrier, chipset, and network configurations.

A charging port board designed for one SM-N770, SM-N970, or SM-N976 variant may not function correctly in another variant, even when the external phone model appears identical.

Differences may include:

• Board shape
• Connector position
• Antenna contacts
• Microphone configuration
• Supporting components
• Cellular antenna routing
• 4G or 5G antenna design
• Regional or carrier-specific circuitry

Confirm the complete model number and visually compare the original and replacement boards before installation.

Installation of an incompatible board may result in poor charging, microphone failure, weak or missing cellular reception, USB problems, fast-charging failure, or other functionality issues.

The Galaxy Note 10 Plus 5G charging port board should not be assumed to be compatible with the standard Galaxy Note 10 Plus 4G model.

Installation Notes

Professional installation is strongly recommended.

Replacing the charging port board requires opening the rear housing and carefully removing internal components. Improper handling may damage the rear glass, display, battery, wireless charging assembly, loudspeaker, S Pen components, antennas, mainboard, flex cables, or connector sockets.

Before final installation:

• Confirm the complete Samsung model number
• Compare the replacement board with the original part
• Inspect the board shape, connectors, contacts, and mounting points
• Disconnect the battery before removing or connecting components
• Inspect the mainboard-to-charging-board interconnect flex cable
• Remove dust, lint, corrosion, and debris from the surrounding area
• Test wired charging before resealing the device
• Test charging with more than one known-good cable and adapter
• Confirm standard and fast-charging operation
• Confirm USB connection and data transfer with a computer
• Test USB accessories where applicable
• Test the lower microphone
• Test calls, voice recordings, and speakerphone operation
• Check loudspeaker operation
• Test cellular signal and mobile-data connectivity
• Confirm 5G connectivity on supported Note 10 Plus 5G variants
• Test Wi-Fi, Bluetooth, and GPS where appropriate
• Confirm that no moisture or charging warning remains
• Test wireless charging to identify unrelated charging faults
• Confirm S Pen detection and charging where applicable

Do not force connectors into place. Bent pins, damaged sockets, torn flex cables, misplaced screws, or excessive pressure may permanently damage the charging port board or mainboard.

The USB-C port must be correctly aligned with the frame opening before screws are tightened. Poor alignment may cause difficult cable insertion, incomplete connection, housing pressure, or premature port damage.

No tools, adhesive, rear-cover seal, or installation materials are included.

Water-Resistance Notice

Opening the device compromises the original factory seal.

A replacement rear-cover adhesive seal may help reduce exposure to dust and incidental moisture, but original water resistance cannot be restored or guaranteed after repair.

The charging port board and USB-C port must be installed and aligned correctly. Improper installation may leave openings that allow moisture or debris to enter the device.

Avoid exposing a repaired device to water, steam, high humidity, or other liquids.

Warranty

This component includes a 30-day limited parts-only warranty against manufacturing defects, subject to the applicable 3C-Easy Markham Component Warranty.

The warranty does not cover:

• Incorrect regional, carrier, chipset, or network compatibility
• Installation in an incompatible 4G or 5G device variant
• Debris, lint, dirt, or contamination inside the USB-C port
• Bent, broken, damaged, or corroded connector pins
• Damaged board connectors, contacts, or electronic components
• Torn, folded, punctured, stretched, or damaged flex cables
• Damaged microphones, antenna contacts, or grounding points
• Improper installation or incorrect part selection
• Physical, impact, or pressure damage
• Liquid, moisture, or corrosion damage
• Damage caused by excessive heat or soldering
• Damage caused by unsuitable charging accessories
• Charging issues caused by the battery or mainboard
• Problems caused by a damaged interconnect flex cable
• USB, microphone, antenna, cellular, or signal issues caused by unrelated components
• Software, accessory, sensor, or compatibility limitations
• Persistent moisture warnings caused by unrelated faults
• Labour, diagnostics, installation, removal, or related repair costs

The component must be connected and fully tested before final installation.

Important Notes

• Charging port board only unless otherwise stated.
• Phone, tools, adhesive, rear-cover seal, and installation materials are not included.
• Select the exact option for the Samsung Galaxy Note 10 Lite, Note 10, or Note 10 Plus 5G.
• Confirm the complete SM-N770, SM-N970, or SM-N976 model number before ordering.
• Charging port boards may not be interchangeable between regional, carrier, 4G, or 5G variants.
• The Note 10 Plus 5G board should not be assumed to fit the standard Note 10 Plus.
• Included microphones, antenna contacts, brackets, and supporting components may vary.
• The original component, bracket, mesh, or other small part may need to be transferred.
• Charging and data-transfer performance should be tested with known-good accessories.
• Cellular signal, 5G connectivity where applicable, and microphone functionality must be tested before final installation.
• Water and dust resistance cannot be guaranteed after the device has been opened or repaired.
• Professional installation is strongly recommended.
• Product appearance, markings, component grade, board layout, connector design, and packaging may vary between production batches.
